Hersteller / Manufacturer

Aquata (Cavalero Inc.)

Name

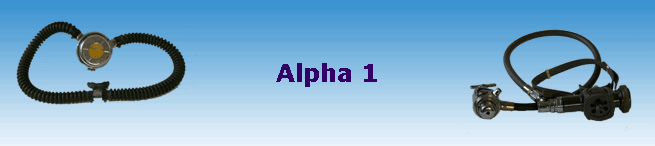

Alpha I

gebaut / built

around 1979

max. Luftlieferleistung / max.air delivery

max. 800 l /min.

Stages

2

Stage 1

downstream

Balanced?

no

Type

kolbengesteuert / piston activated

Mitteldruck / IP

9 bar

HP-Port

1

Stage 2

Downstream

Type

no

LP-Port

2

Gehäuse/Housing

Metal

max Druck / Pressure

200 bar

Anschluss/Fitting

DIN

Atemwiderstand / Breathing effort

4 gr. in / 2 gr. out

Gewicht / Weight

1300 g

Gesehen wo/Seen on

my collection, Submarin 6/79

Special notice

Schlauchlänge 650 mm

Techn. drawing

no

Service manual

no
