Hersteller / Manufacturer
|
Mares
|
|
Name
|

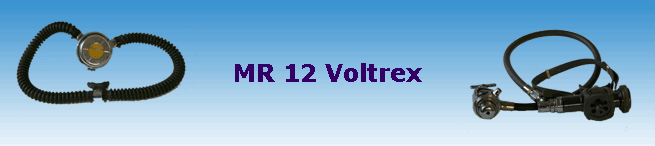

MR 12 Voltrex
|
|
gebaut / built
|
unknown
|
|
max. Luftlieferleistung / max.air delivery
|
> 1400 Nl/min
|
|
Stages
|
2
|
|
|
|
|
Stage 1
|
upstream
|
|
Balanced?
|
balanced
|
|
Type
|
Membrangesteuert / diaphragm activated
|
|
Mitteldruck / IP
|
9,5 - 9,8 bar
|
|
HP-Port
|
1 x 7/16” UNF
|
|
|
|
|
Stage 2
|
Downstream
|
|
Type
|
Injector
|
|
LP-Port
|
5 x 3/8” UNF
|
|
|
|
|
Gehäuse/Housing
|
Metal
|
|
max Druck / Pressure
|
200 bar
|
|
Anschluss/Fitting
|
DIN / INT
|
|
|
|
|
Atemwiderstand / Breathing effort
|
1,22 J/l Atemarbeit
|
|
Gewicht / Weight
|
unknown
|
|
Gesehen wo/Seen on
|
Technik und Funktion der Atemregler
|
|
Special notice
|
|
|
Techn. drawing
|
no
|
|
Service manual
|
no
|
|
|
