Hersteller / Manufacturer
|
Nemrod Metzeler SA
|
|
Name
|

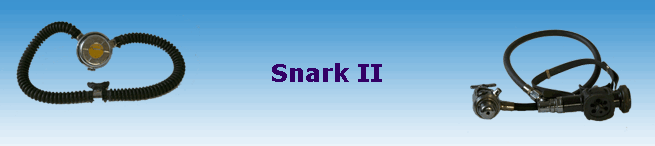

Snark II
|
|
gebaut / built
|
around 1979
|
|
max. Luftlieferleistung / max.air delivery
|
> 400 l /min.
|
|
Stages
|
2
|
|
|
|
|
Stage 1
|
Upstream
|
|
Balanced?
|
no
|
|
Type
|
Membrangesteuert / diaphragm activated
|
|
Mitteldruck / IP
|
8 - 8,5 bar
|
|
HP-Port
|
1
|
|
|
|
|
Stage 2
|
Downstream
|
|
Type
|
no
|
|
LP-Port
|
2
|
|
|
|
|
Gehäuse/Housing
|
Plastik
|
|
max Druck / Pressure
|
200 bar
|
|
Anschluss/Fitting
|
DIN / INT
|
|
|
|
|
Atemwiderstand / Breathing effort
|
4 gr.
|
|
Gewicht / Weight
|
1215 g
|
|
Gesehen wo/Seen on
|
Submarin 6/79
|
|
Special notice
|
Schlauchlänge 670 mm.
|
|
Techn. drawing
|
no
|
|
Service manual
|
no
|
|
|
