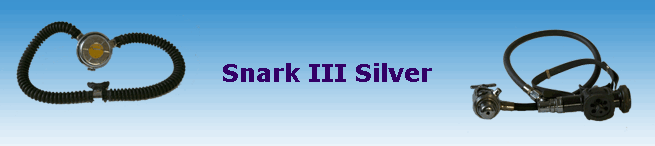

Der Snark III Silver ist der letztgebaute Zweischlauchautomat
The Snark III silver was the last doublehose reg that was built.
Hersteller / Manufacturer
Nemrod
Name
Snark III Silver
gebaut / built
unknown
max. Luftlieferleistung / max.air delivery
> 400 l /min.
Stages
2 (3)
Stage 1
Upstream
Balanced?
no
Type
membrangesteuert / Diaphragm activated
Mitteldruck / IP
7,5 bar
HP-Port
no (early), 1 (newer)
Stage 2
Upstream
Type
no
LP-Port
1 (later)
Gehäuse/Housing
Messing verchromt
Membrane Ø / Diaphragm Ø
11,5 cm
max Druck / Pressure
200 bar
Anschluss/Fitting
DIN / INT
Luftauslass/ Air outtake
Runddichtung Gummi / Mushroom rubber
Anschluss Gehäuse Ø/ Fitting Housing Ø
no Information by now
Mundstück/Mouthpiece
Einwegeventil Gummi / non-return rubber
Anschluss Mundstück Ø /Fitting Mouthpiece Ø
no Information by now
Gesehen wo/Seen on
my collection
Special notice
The engraved model had no HP-Port, the later ones had - the LP-Port was added on the last regs (optional to the older ones) Hose length 550 mm, weight 2044 gr.
