Hersteller / Manufacturer

GSD, Avegno

Name

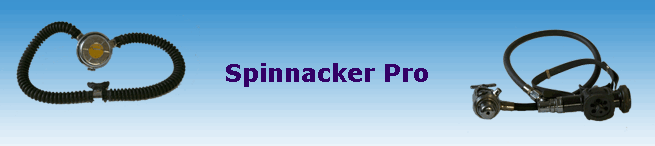

Spinnacker

gebaut / built

around 1979

max. Luftlieferleistung / max.air delivery

max. 400 l /min.

Stages

2

Stage 1

Downstream

Balanced?

no

Type

kolben + membran gesteuert / piston +  diaphragm activated

Mitteldruck / IP

4 bar

HP-Port

1

Stage 2

Upstream

Type

no

LP-Port

1

Gehäuse/Housing

Plastik

max Druck / Pressure

200 bar

Anschluss/Fitting

DIN / INT

Atemwiderstand / Breathing effort

15 mm/Ws, Inhale 5 mm/Ws

Gewicht / Weight

1280 g

Gesehen wo/Seen on

Submarin 6/79

Special notice

Schlauchlänge 700 mm

Techn. drawing

no

Service manual

no
