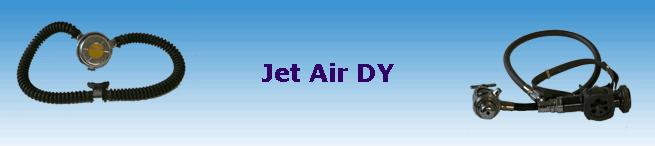

Jet Air DY

Der Jet AIR DY wurde in 2 Versionen gebaut. Die erste Version entspricht dem Stream Air, die zweite dem Mistral DW

The Jet AIR DY was built in 2 Versions: The first version is the same as the Stream Air, the second ist the same as the Mistral DW.

Hersteller / Manufacturer

U.S. Divers

Name

Jet Air DY, Jet AIR DY (1020)

gebaut / built

1956-1957 (1.gen), 1961-63 (2. gen.)

max. Luftlieferleistung / max.air delivery

no Information by now

Stages

1





Stage 1

Upstream

Balanced?

no

Type

membrangesteuert / Diaphragm activated

Mitteldruck / IP

unknown

HP-Port

no





Stage 2

no

Type

venturi-assisted

LP-Port

no





Gehäuse/Housing

brown and black phenolic (1. gen), black cycolac (2. gen.)

Membrane Ø  / Diaphragm Ø

11,5 cm

max Druck / Pressure

unknown

Anschluss/Fitting

INT

Luftauslass/ Air outtake

Entenschnabelventil / duckbill





Anschluss Gehäuse Ø/ Fitting Housing Ø

no Information by now

Mundstück/Mouthpiece

Einwegeventil / non-return valve

Anschluss Mundstück Ø /Fitting Mouthpiece Ø

no Information by now

Gesehen wo/Seen on



Special notice



Techn. drawing

Basic Scuba by Fred M. Roberts, 2nd Edition

Service manual

Basic Scuba by Fred M. Roberts, 2nd Edition

Jet-Air

Jet-Air

Label Jet Air late

Label Jet Air late

Back-side Jet Air late

Back-side Jet Air late

Inside Jet Air late

Inside Jet Air late

Mouthpiece Jet Air late

Mouthpiece Jet Air late
